When a shaft must fit a bearing or a housing needs to seal evenly, small dimensional errors can disrupt an entire assembly. Precision Cnc Parts help businesses control those details through accurate machining, repeatable processes, and carefully checked dimensions. Small deviations matter.
CNC machining can produce complex features from metals and engineering plastics, making it useful for prototypes, replacement components, and production runs. A well-made part may reduce fitting adjustments, material waste, and delays during assembly. The actual result depends on more than the machine. Material selection, tool condition, programming, setup, and inspection all influence quality.
That is why clear drawings and realistic tolerances matter. For example, a mounting hole may need close control, while a non-functional outer surface may not. Specifying extremely tight tolerances everywhere can increase cost without improving performance. It is an easy mistake to make.
Choosing a capable supplier means reviewing relevant experience, quality-control methods, and communication practices—not just comparing unit prices. Ask how critical dimensions are measured and whether inspection records are available for your order. For important applications, request a sample or discuss a first-article inspection before committing to larger quantities. These steps cannot remove every risk, but they can reveal issues early.
Precision CNC parts are not automatically the best choice for every design. Yet when fit, consistency, and dependable dimensions matter, they can provide a practical foundation for reliable products and smoother manufacturing.

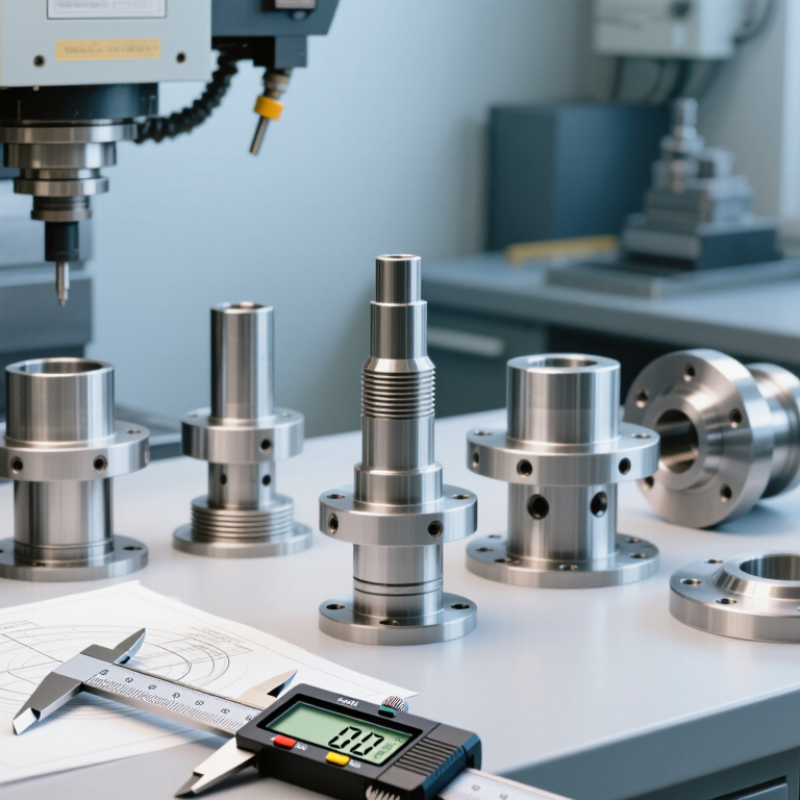

Why Choose Precision CNC Parts for Your Business?
What Defines Precision? ISO 286 Specifies 20 IT Tolerance Grades
Precision is not a vague promise of “tight machining.” ISO 286 defines 20 standard tolerance grades, from IT01 and IT0 through IT18. Each grade sets a tolerance width for a specified basic size. Finer grades generally mean narrower limits, but the actual value also depends on the part’s nominal dimension. That distinction matters.
For example, a turned shaft measuring 20 millimeters may need a different tolerance width than a larger component with the same IT grade. The grade alone does not define whether a shaft slides, presses, or rotates inside a matching bore. The specified upper and lower limits, along with the chosen fit, determine that relationship. Clear drawing callouts help machinists inspect parts with suitable gauges or measuring equipment, rather than guessing from appearance.
Tighter is not always better. A narrower tolerance can demand slower cutting, more frequent measurement, and tighter control of temperature and tool wear. Those steps may be worthwhile for a locating pin or bearing seat, but unnecessary on a non-mating cover. In practice, tolerance decisions can be less tidy than a chart suggests; assembly conditions and inspection methods deserve a second look. A useful specification links the IT grade and fit to how the part actually works.
| ISO 286 IT Grade | Relative Tolerance Level | General Selection Guidance | Business Consideration |
|---|---|---|---|
| IT01 | Finest grade in this series | For exceptional precision requirements; confirm feasibility with the manufacturing process and inspection plan. | May require specialized machining, measurement, and process control. |
| IT0 | Extremely fine | Consider only when the design function justifies very tight dimensional control. | Evaluate the cost and yield impact before specifying. |
| IT1 | Very fine | Suitable for highly demanding dimensional requirements where verified capability is available. | Define measurement methods and acceptance criteria clearly. |
| IT2 | Very fine | Used for precision features that require tighter control than routine machining typically provides. | Confirm process capability for the actual material and geometry. |
| IT3 | Very fine | Consider for critical precision features after reviewing process and inspection capability. | Tight limits can increase inspection effort and manufacturing cost. |
| IT4 | Fine | For Precision Parts where close dimensional consistency is functionally important. | Use only on features whose fit or performance needs it. |
| IT5 | Fine | Often considered for precision fits and carefully controlled machined features. | Specify the required fit and tolerance zone, not the grade alone. |
| IT6 | Fine | Commonly considered for close fits and precision components, subject to feature and process capability. | Coordinate mating-part tolerances and inspection requirements. |
| IT7 | Close | May suit general precision machining and functional fits when supported by the design. | Can balance dimensional control with practical production needs. |
| IT8 | Close to general | Often suitable for machined dimensions that need controlled but not exceptionally tight tolerances. | Review fit, assembly, and functional requirements. |
| IT9 | General | Consider for less demanding machined features and dimensions with adequate functional clearance. | May reduce unnecessary machining and inspection effort. |
| IT10 | General | May be appropriate for non-critical dimensions where broader variation is acceptable. | Check that the tolerance does not affect assembly or performance. |
| IT11 | General to coarse | Consider for features with relatively relaxed dimensional requirements. | Suitable limits depend on the part's function and manufacturing route. |
| IT12 | Coarse | For dimensions where broad tolerance is acceptable and function is not compromised. | Confirm variation is compatible with assembly and downstream operations. |
| IT13 | Coarse | Generally considered for non-critical dimensions with generous allowances. | May support economical production when precision is not needed. |
| IT14 | Coarse | Use only where the design permits substantial dimensional variation. | Check interfaces, clearances, and finishing allowances. |
| IT15 | Coarse | For features with low dimensional sensitivity and broad acceptable limits. | Ensure the tolerance remains suitable for the full assembly. |
| IT16 | Coarse | Consider for non-critical dimensions where broad variation is acceptable. | Avoid applying a broad grade to functional interfaces without review. |
| IT17 | Very coarse | For dimensions with minimal precision requirements. | Confirm that the resulting variation does not affect safety or function. |
| IT18 | Coarsest grade in this series | Use only when the part design can accommodate very broad dimensional variation. | Review fit, assembly, and process requirements before specifying. |
Important: ISO 286 defines 20 IT tolerance grades: IT01, IT0, and IT1 through IT18. An IT grade indicates the tolerance magnitude; the numerical tolerance depends on the applicable nominal-size range. The fundamental deviation determines the tolerance zone's position relative to the zero line. The selection guidance above is illustrative, not a substitute for the standard, a drawing, or a manufacturing capability review.
A precision CNC part begins as a digital design, but a machine cannot cut a drawing directly. CAM software converts the geometry into toolpaths, including movements, speeds, and cutting operations. A postprocessor then translates those paths into NC instructions suited to the machine’s controller. ISO 6983 describes a widely used format for organizing these instructions, including address words and commands for machine motion. You may recognize the familiar G-code style. That is only the instruction layer. The standard helps programs communicate consistently, but it does not define every machine’s capabilities or replace careful setup.
On the shop floor, an operator checks the program against the material, tooling, workholding, and required tolerances. A command that looks correct on screen can still cause a poor finish if the tool is worn or the stock is clamped unevenly. For example, a small positioning error may leave a visible step on a turned shoulder. Test runs, measurement, and adjustments help catch problems before a full batch is made. Experience matters. Even a well-prepared program can rest on an assumption that proves wrong at the machine, so inspection data should inform the next revision. When design, programming, and process checks work together, businesses can produce repeatable parts with less avoidable variation.
General tolerances keep CNC drawings readable when every edge does not need a separate limit. ISO 2768-1:1989 defines four classes: fine (f), medium (m), coarse (c), and very coarse (v). The selected class applies to untoleranced linear and angular dimensions, not to dimensions with individually stated limits.
The standard’s tolerance table shows why class selection matters. For a 30–120 mm linear dimension, the permitted deviation is ±0.15 mm in class f, ±0.3 mm in m, ±0.8 mm in c, and ±1.5 mm in v. These are specification limits, not promises of actual machining variation. A shaft seat or mating slot may need a tighter, explicitly marked tolerance. Fit is the point.
For a CNC supplier, matching the class to each feature can avoid needless inspection and rework while protecting assembly performance. A broad class may suit a noncritical cover edge; it may not suit a bearing location. ISO 2768-1 provides a shared drawing language, but it cannot decide functional requirements for the designer. One detail is easy to miss: the standard’s general tolerances do not replace geometric tolerances where form or position controls function. Check the drawing, material, and process capability together. Even a sensible class deserves a second look before release.
How Are General Tolerances Specified? ISO 2768-1 defines four tolerance classes for dimensions that do not have individually specified tolerances.
Example: For a nominal linear dimension over 30 mm up to 120 mm, the general tolerance is ±0.15 mm (fine), ±0.3 mm (medium), ±0.8 mm (coarse), or ±1.5 mm (very coarse). Smaller tolerance values indicate tighter limits. Use the class stated on the drawing; critical features may need individually specified tolerances.
Precision CNC parts can hold close dimensions, but a drawing only helps when everyone reads it the same way. ASME Y14.5-2018 provides a shared language for geometric dimensioning and tolerancing, or GD&T. It defines how symbols describe form, orientation, location, and runout. A position tolerance, for example, can control a drilled hole relative to specified datums. That matters when a mating pin must slide into place without forcing assembly.
Fit matters.
On a CNC job, clear datum references guide setup, machining, and inspection. A machinist can locate a part from the same surfaces the inspector uses, reducing interpretation gaps. The standard also helps teams distinguish permissible variation from a nominal target. Still, a GD&T callout is not a quality guarantee. Poorly chosen datums or unnecessarily tight tolerances can increase inspection time and cost without improving function.
A drawing may look precise yet leave a practical question unanswered: which face truly controls assembly? That question deserves review before cutting metal.
It defines a tolerance width for a specified basic size. Finer grades generally allow less variation.
Not necessarily. The permitted width also depends on each part’s nominal dimension.
No. Upper and lower limits, plus the selected fit, determine how parts slide, press, or rotate together. Fit matters.
No. They can require slower cutting, frequent checks, and closer control of tool wear and temperature.
A locating pin or bearing seat may need close limits. A non-mating cover may not.
It uses symbols to define form, orientation, location, and runout. A position callout can relate a hole to datum surfaces.
They help the machinist and inspector locate the part from the same surfaces. That can reduce interpretation gaps.
No. Poorly chosen datums or unnecessarily tight limits can add inspection time without improving function. The drawing may still leave assembly questions unanswered.
